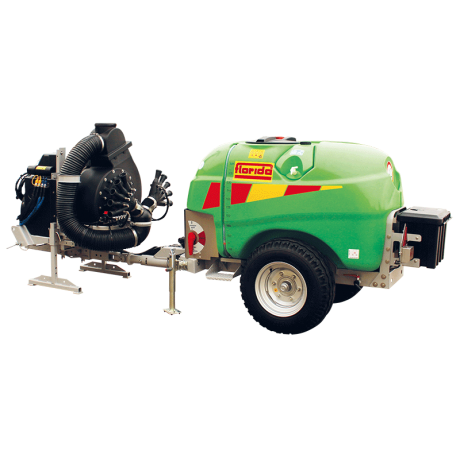

ARTICULATED NEBULIZERS - SPRAYMIST.ART SC.2


DOWNLOAD

SPRAYMIST.ART is a sprayer line for low volume treatment in row farming, with an efficient and rational defence technique, associated with the need to safeguard the environment and the operator's safety. The main feature in the possibility of low volume spraying, where the high speed air flow, crossing the venturi sprayers, creates tiny, uniform drops. The same flow deposits the drops on the plants, guaranteeing optimal coverage.


Low volume spraying has numerous advantages:


- LESS DISPERSION. The various spray heads available to suit the various types of planting system enable distribution to be targeted on the plants, considerably limiting dispersion due to air drift. The minute droplets adhere totally to the surface of the plants, thus eliminating dripping.

- BETTER DISTRIBUTION. The droplets suspended in the air flow reach all parts of the plant, even the most concealed, ensuring uniform distribution of the liquid sprayed and total cover of the vegetation.

- PRODUCT SAVINGS. As there are no drips and minimum air-drift dispersion, all the product is distributed on the crops. The quantities indicated on the product packs can therefore be reduced by 10-20%. This therefore saves the quantity of product which would normally be lost on the ground and in the air with normal spraying.

- SAVINGS IN TIME AND COSTS. With the same amount of liquid in the tank, you can treat a surface from two to five times greater than with normal volume spraying. This longer working time enables the tank to be filled less often, reducing dead time for filling and preparing the water/product mixture.
This considerably reduces the time taken, saving fuel and labour costs. Spraying is therefore more rapid, sometimes indispensable for successful treatment.

- LESS WEAR. As they operate at low pressure, the pump and hydraulic circuit are less liable to wear than in a sprayer with high pressure pump. The performance of the sprayer therefore remains unaltered over the years.

- FLEXIBILITY. The vast range of heads available make SPRAYMIST sprayers extremely flexible and suitable for applying targeted treatments on specialised crops using any type of planting system.



STANDARD EQUIPMENT:


- Manifold carried to three points of the tractor and trailered cistern unit

- Steering radius of up to 220°

- Polyethylene tank with total emptying

- Rear trailer frame hot-dip galvanized

- Straddle-able manifold with variable geometry for treating four row faces with row width of 2.00 to 3.00 metres, with central lifting

- Diffuser with individually adjustable and closable outlets

- Powder-painted head frame

- One speed multiplier with release and centrifuge clutch with linings

- Blower unit with DOUBLE INLET impeller diam. 500 mm

- Volume of air up to 22.000 m³/h

- Adjustable carriage

- Wheels 10.0/80-12

- Low pressure centrifuge pump with automatic belt tensioner, flow rate 230 litres/min

- 4 way electrical distribution controller and electric pressure adjustment, with remote control panel on the tractor

- Electro-hydraulic controls for the 3 movements of the head with remote control panel on the tractor

- Hydraulic agitation of the liquid in the tank

- External suction filter with retaining valve

- Hand washing clean water tank

- Circuit washing device

- Product pre-mixer in the input filter

- Equipment box ont the rear carriage

- External tank level with graduated scale

- Side tank emptying valve

- Tank indicator level with quadrant



STANDARDS:
All SPRAYMIST sprayers comply with EC standards on operator safety and health protection. They also comply with European standards on environmental safety and protection.

TANK:
available with polyethylene tank with a nominal capacity of 800, 1000 and 1500 litres.


Actual capacity higher than nominal capacity in compliance with current regulations;
Quantity of residual liquid with tank flat or sloping by ± 10% below the limit allowed by current regulations;
Built-in clean water tank for hand-washing.
Built-in hydraulic circuit washing tank.

PUMP:
low pressure centrifugal with 130 litres/minute delivery (diaphragm pump optional on request).


FAN UNIT:
centrifugal fan, 500 mm dia., 600/700 m³/hour air delivery. Absorbed power 40 KW.


SPRAY REGULATION: by means of 12-position measuring taps with built-in anti-drip device.


TYPE

SPRAYMIST.ART SC.2 800
SPRAYMIST.ART SC.2 1000
SPRAYMIST.ART SC.2 1500
Width, cm185185185
Height, cm270270270
Length, cm368368418

Specifications may be altered without notice
*weights vary depending staging

PARTICOLARE

PROVE IN CAMPO 2

PROVE IN CAMPO

APERTURA/CHIUSURA

Di Serie

Clean water tank for hand-washing.
Outside scaled glass level guage.
Full emptying of the tank with valve.
Premixer of the chemical product.
Spraying circuit washing device.
Spraying head.
Remote control unit on the tractor.

Optional

Surcharge for pull out external premixer to prepare the product and place it in the main tank.
Surcharge for tank in polyethylene "FOGLIA" model 1000, 1500 and 2000 litres sprayers prepared for application of an external premixer
Rotating nozzle with tank washing jet.
Super premixer with transfer into the tank.
Constant-velociy (wide-angle) cardan joint 60 hp with guard
Cardan joint 50 hp with guard
Filòling hose with "T"-shaped filter and connection with the intake filter
Centrifugal pump with hydraulic motor and hose for tank filling
Tank level gauge with dial
Articulated drawbar with tractor arms coupling
Articulated drawbar.
Drowbar with fork fitting
Signal light systems. Type-approved for the road circulation (only for Italy).
Pair of mudguards
Axle with brakes for 600 to 1500 litres low volume sprayers
Axle equipment with leaf springs.
Electrostatic system for distribution on two diffusers
Electric controls.
Two-way computer for distribution with electrovalves
Two section electrovalves to open and close flow on the right and left sides
Electric.hydraulic distributor for arm movements
Manual hydraulic distributor and hoses kit to move the arms (it is necessary if the tractor is not equipped with a distributor and an electro-hydraulic distributor
Diaphragm pump APS 121 / AR 1203
Diaphragm pump IDS 1201 / BHS 130
Double suction centrifugal rotor
